详细说明：

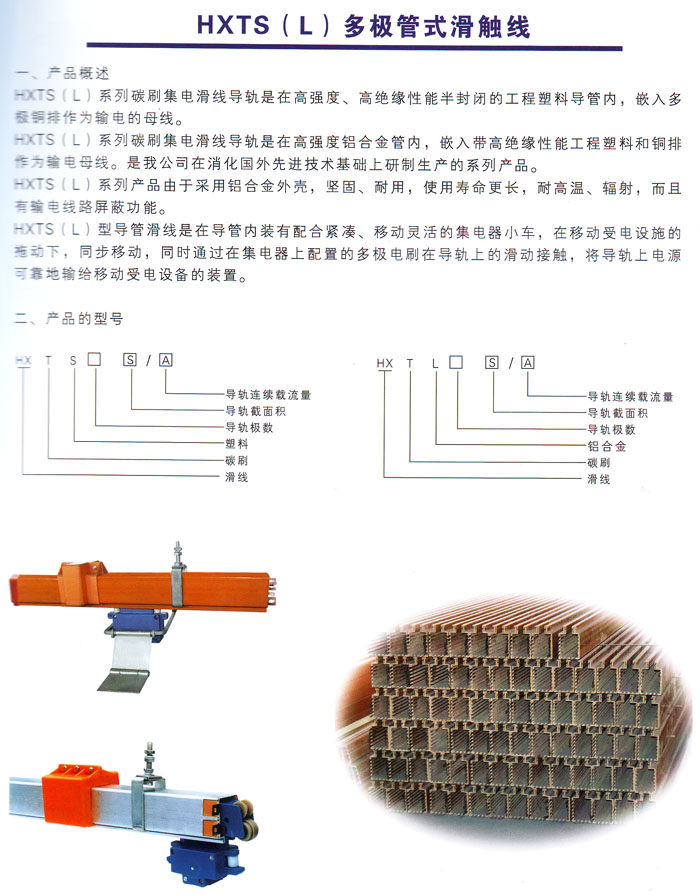

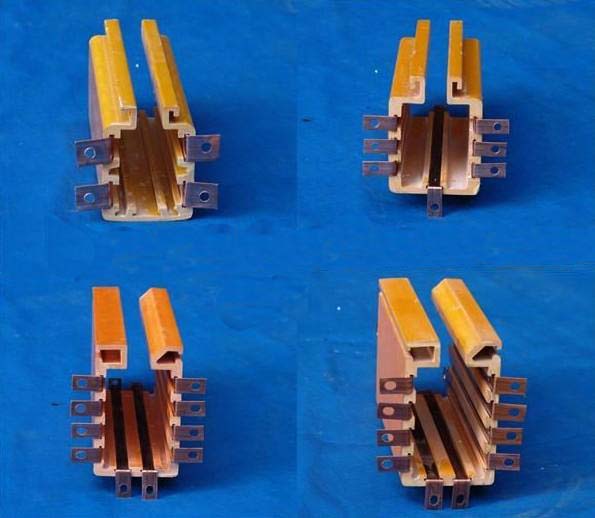

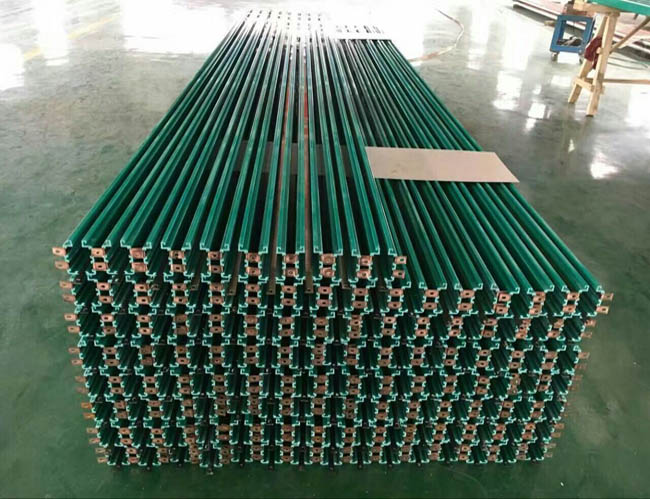

| HXTS、HXTL系列多极管式滑触线 | |||||||
| 型号规格 | 滑触线截面尺寸（mm) | 极数 | 载流量(A) | 适配内置小车式集电器 | |||
| A | B | C | E | ||||
| HXTS-10 | 94.0 | 64.5 | 17.0 | 103.0 | 3-16 | 50 | JD-(3-16)/25 |
| HXTS-15 | 69.0 | 62.0 | 12.5 | 89.0 | 3-16 | 80 | JD-(3-16)/50 |
| HXTS-20 | 67.0 | 57.0 | 17.0 | 80.0 | 3-10 | 100 | JD-(3-10)/50 |
| HXTS-35 | 70.0 | 62.0 | 15.0 | 90.0 | 3-7 | 140 | JD-(3-7)/50 |
| HXTS-50 | 67.0 | 57.0 | 17.0 | 80.0 | 3-5 | 170 | JD-(3-5)/50 |
| HXTS-70 | 67.0 | 57.0 | 17.0 | 80.0 | 3-5 | 210 | JD-(3-5)/50 |
| HXTS-96 | 77.0 | 77.0 | 18.0 | 96.0 | 3-5 | 300 | JD-(3-5)/100 |
|
注：1、滑触线标准长度：4m、6m。 |
|||||||
